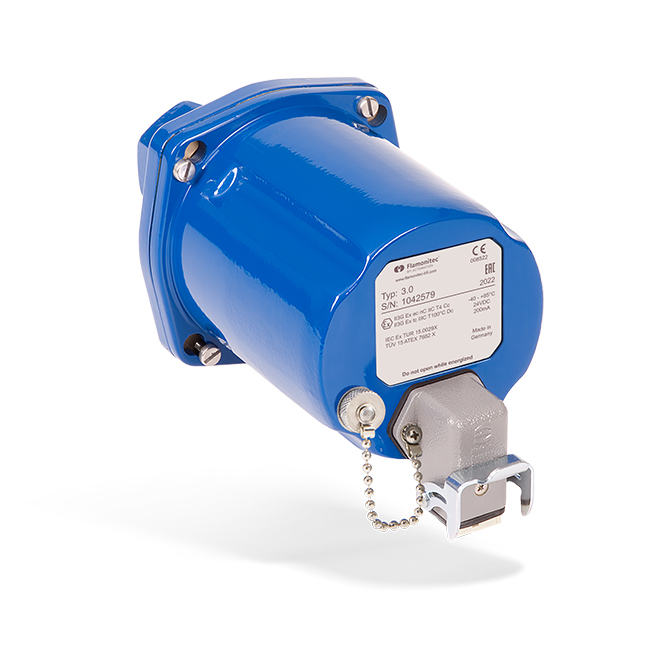

Flame Scanner

Type 3

The type 3 Flame Scanner forms a complete flame monitoring system in combination with a 3000 series Flame Amplifier.

  • Fail-safe design
  • Suitable for continuous operation
  • Use at ambient temperatures from - 40 °C to +70 °C (optional fiber optic insert up to 300 °C)
  • Approved according to international standards
  • Protection class IP65 / IP66
  • IECEx-certified
Catalog Get a quote Contact us

The Type 3 Flame Scanner forms a complete flame monitoring system in combination with a Series 3000 Flame Amplifier. The 3000 flame monitoring and evaluation system has been specially developed for use on gas turbines with safety and optimum availability in mind.

Our goals are to monitor combustion processes safely and reliably, to provide criteria for optimizing the combustion process and to reduce pollutant emissions. The system is able to reliably monitor the flames in all load conditions and fuel compositions.

Accessories

Everything you need

Do you have a question about our service portfolio, need planning support for a project or are you looking for a specialist in flame monitoring? Then please contact us.

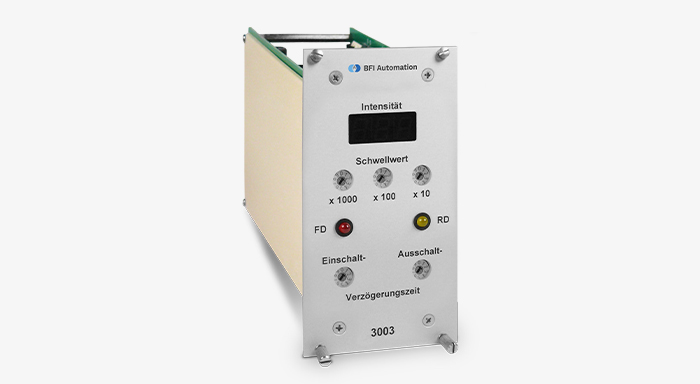

The 3003 has the task of processing and displaying the output signal (pulse telegram) generated by the flame sensor in parallel with the 3001.
Learn more
For 1-6 slide-in units System 3000/4000 to DIN 41494.
Learn more
The fiber optic cables are an extension of the application range of our flame monitoring devices.
Learn more
The fiber optic lances are an extension of the application range of our flame monitoring devices.
Learn more
For connecting flame scanner and flame detector (System 3000) with highly efficient protection
Learn more
For connecting compact flame controller CFC and burner control unit with highly efficient protection.
Learn more
For simulating a flame for flame sensors/compact flame monitors.
Learn more
Setting the viewing axis of the flame scanner/compact flame scanner for standard, Ex enclosures and fiber optic technology.
Learn more
The main effect is to reduce the internal temperature to prevent overheating.
Learn more
Ball flange for aligning the flame sensor / compact flame monitor on the sight tube of the burner.
Learn more
Temperature barrier and potential separation between sight tube and flame scanner/compact flame detector.
Learn more
Connection element optionally with integrated pressure glass pane protects the flame monitor from pressurization from the combustion chamber.
Learn more
Protects the Flame Scanner / Compact Flame Controller from pressurization from the combustion chamber. Optionally available with flushing media flange and for higher pressures.
Learn more
The SKL sensor head is used to connect the BFI fiber optic cable to the sight tube of the respective application.
Learn more
The SKL4DB sensor head is equipped with a metal-fused pressure glass pane, which protects the sensor optics from pressurization of the combustion chamber.
Learn more
The quick-release fastener for BFI Ex enclosures enables quick and torsion-free installation of the sensors and compact flame detectors in the Ex enclosure as well as easy maintenance access without having to remove the connecting cable of the devices.
Learn more

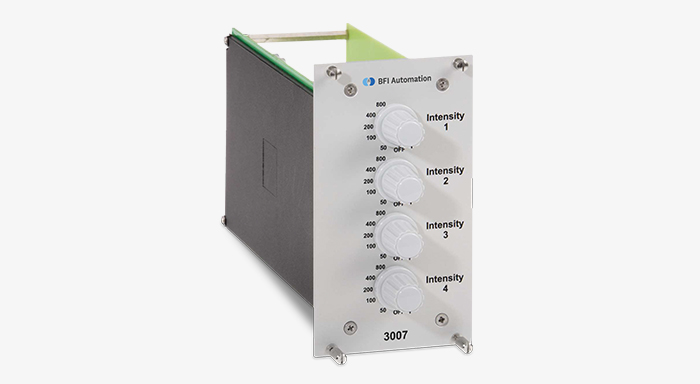

The flame signal converter 3007 resolves the flame signal of the associated flame scanner and provides a current signal (0/4...20 mA) linear to the measured flame intensity for further external processing.
Learn more
